CS21 Standard Ceiling C-Jaya < 50M2

CS21 Standard Ceiling C-Jaya < 50 m2

Introduction

Ceiling systems that designed for a room with area up to 50 m2 or spans max. of 7 linear meter with a cost-efficient budget. Deflection limit L/240.

Specifications :

  • Weight: 6,5 Kg/m2

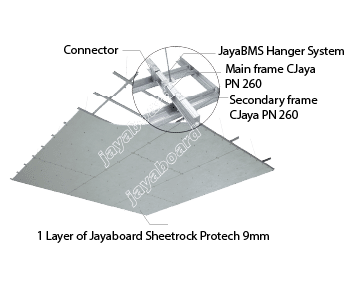

Supporting Materials:

  • Frame: JayaBMS Hanger System (Bracket PN 220/221, Clip Adjuster PN 222, Rod PN 227 M4), JayaBMS C-Jaya C-Channel PN-260, Wall Angle PN-252
  • Board: 1 layer of Jayaboard® Sheetrock® Protech 9mm
  • Jointing: JayaCompound UB 20 / Cornice 5 in 1.





Suitable for :

  • Low-Cost Apartment
  • Budget Hotel
  • Low Cost Residential Project



Notes:

  • All the materials above calculated based on a room with a size of (10x10m). Another room sizes should be considered further.
  • Suspension gap max. of 1000mm.
  • Primary frames gap max. of 1000mm
  • Secondary frames gap max. of 600mm
  • All the materials above needs to be reconfirmed by the Contractor/ Applicators regarding bookings material inquiry order.
  • Exclude waste material.

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Jayaboard representative for further assessment.
