CWS6SS Twin Stud - Standard Optimum (Soundstop)

CWS6SS Twin Stud - Standard Optimum (Soundstop)

Introduction

This partition system developed to meet the requirements of Soundproof.

Specifications :

  • Fire Rating: FRL 0/60/60
  • Acoustic Rating: STC 47 (no insulation), STC 61 (insulation 60kg/m3)
  • Weight: 30 Kg/m2
  • Grade (B5234): Heavy Duty​



Supporting Materials:

  • Frame: JayaBMS Wall Track, JayaBMS Deflection Head Track, JayaBMS C Stud.​

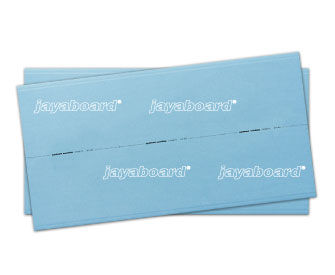

  • Lining: 2 layers of Jayaboard Soundstop 12mm (2 sides)
  • Jointing: JayaCompound UB 20 / Cornice 5 in 1.





Suitable for :

  • Hotel Corridor
  • Hotel partition wall
  • Music Studio
  • Library
  • Any other area that require soundproof



Notes:

  • All the materials above calculated based on a room with a size of (3 x 33.33m). Another room sizes should be considered further.
  • Stud frame gap max. of 600mm.
  • All the materials above needs to be reconfirmed by the Contractor/ Applicators regarding bookings material inquiry order.
  • Exclude waste material.
