SSS10 Acoustic - Fire Rating 2 Hours

SSS10 Acoustic - Fire Rating 2 Hours

Introduction

This partition system developed to meet the requirements of Fire Resistant up to  2 hours (FRL -/120/120).

Specifications :

  • Fire Rating: FRL 0/120/120
  • Acoustic Rating: STC 52 (no insulation), STC 64 (insulation 60kg/m3)
  • Weight: 53 Kg/m2
  • Grade (B5234): Severe Duty​



Supporting Materials:

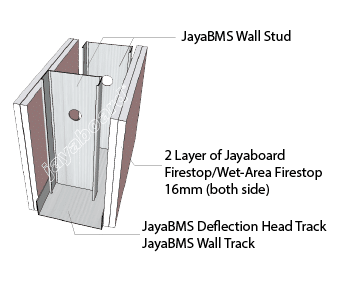

  • Frame: JayaBMS Wall Track, JayaBMS Deflection Head Track, JayaBMS C Stud.​

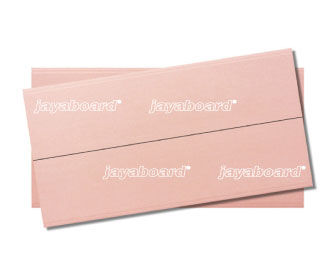

  • Lining: 2 layers of Firestop 16mm (2 sides).
  • Jointing: JayaCompound UB 20 / Cornice 5 in 1.





Suitable for :

  • Hotel Corridor
  • Apartment partition wall
  • Library
  • Any other area that require Fire Resistance



Notes:

  • All the materials above calculated based on a room with a size of (3 x 33.33m). Another room sizes should be considered further.
  • Stud frame gap max. of 600mm.
  • All the materials above needs to be reconfirmed by the Contractor/ Applicators regarding bookings material inquiry order.
  • Exclude waste material.

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Jayaboard representative for further assessment.
