Fire Rating 2,5 Hours - Optimum

Introduction

This partition system developed to meet the requirements of Fire Resistant up to 2,5 hours.(FRL -/150/150).

Specifications :

  • Fire Rating: FRL -/150/150
  • Weight: 53 Kg/m2
  • Grade (BS 5234): Severe Duty

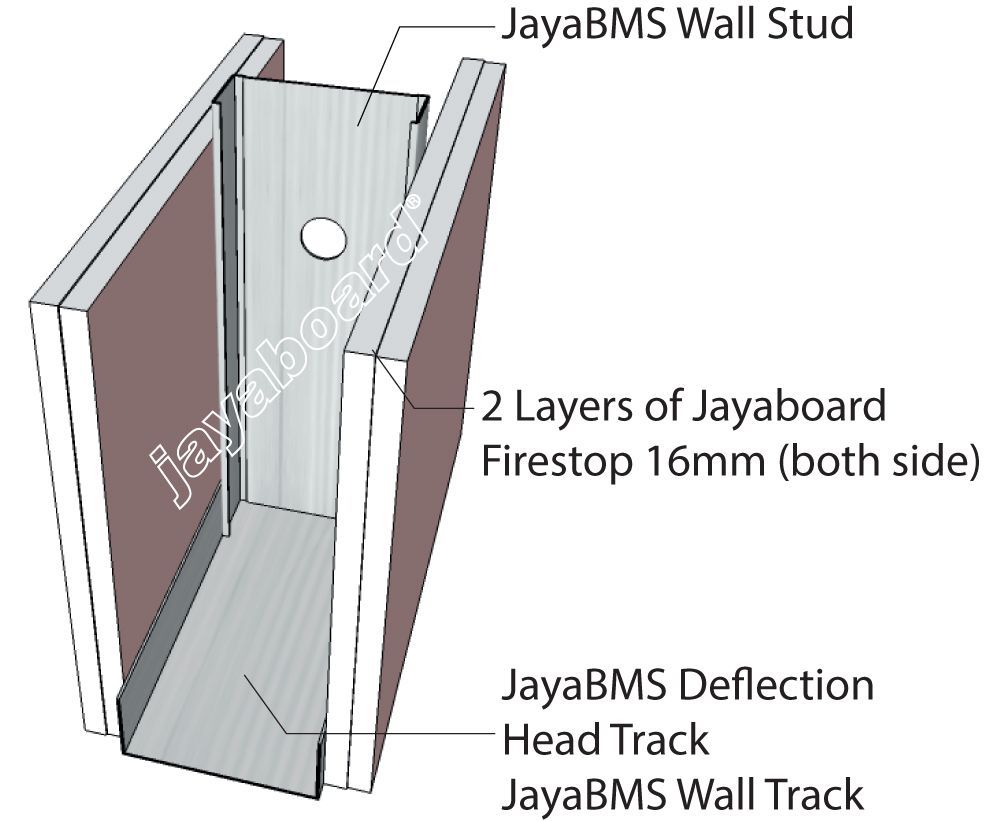

Supporting Material:

  • Frame: JayaBMS Wall Track, JayaBMS Deflection Head Track, JayaBMS C Stud (Thickness min. 0,5mm BMT)
  • Lining: 2 layer of Firestop 16mm (2 sides)
  • Jointing: JayaCompound UB 20/ Cornice 5 in 1





Suitable to be applied at:

  • Hotel Corridor
  • Hotel Partition
  • Factories and data centers
  • Library
  • Other areas that require an optimal level of fire resistance​



Notes:

  • The fire rating level is based on lab tests, expert opinion or special calculation tools.
  • Minimum frame thickness is 0.5mm BMT.
  • The perimeter treatment must be supported with a fire-resistant sealant as specified.
  • Deflection Head Track must be used to prevent cracks caused by structural deflection.
  • Standard deflection criteria L/240 with static UDL (Uniformly Distributed Load) of 0.25kPa

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Jayaboard representative for further assessment.
