SS16 Standard X-Ray Protection

Standard X-Ray Protection

Introduction

This partition system is designed to meets the needs of X-Ray protection.

Specifications :

  • Fire Rating: FRL -/30/30​
  • Acoustic Rating: STC 36 (no insulation), STC 43 (insulation 60kg/m3)
  • Weight: 23 Kg/m2
  • Grade (BS 5234): Medium Duty​



Supporting Materials:

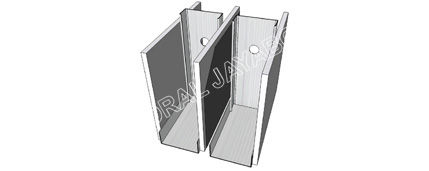

  • Frame: JayaBMS Wall Track, JayaBMS Deflection Head Track, JayaBMS C Stud.​
  • Lining: 1 layer of Jayaboard® SHEETROCK® PROTECH 12mm (2 sides) + min. thickness of 1mm for lead sheet (1 side).
  • Jointing: JayaCompound UB 20 / Cornice 5 in 1.





Suitable for :

  • Hospital
  • Radiology room
  • Dental Clinic
  • Any other area that need to be protected from X-ray radiation.



Notes:

  • All the materials above calculated based on a room with a size of (3 x 33.33m). Another room sizes should be considered further.
  • Stud frame gap max. of 600mm.
  • All the materials above needs to be reconfirmed by the Contractor/ Applicators regarding bookings material inquiry order.
  • Exclude waste material.

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Jayaboard representative for further assessment.
